Diamond Writing Cutter

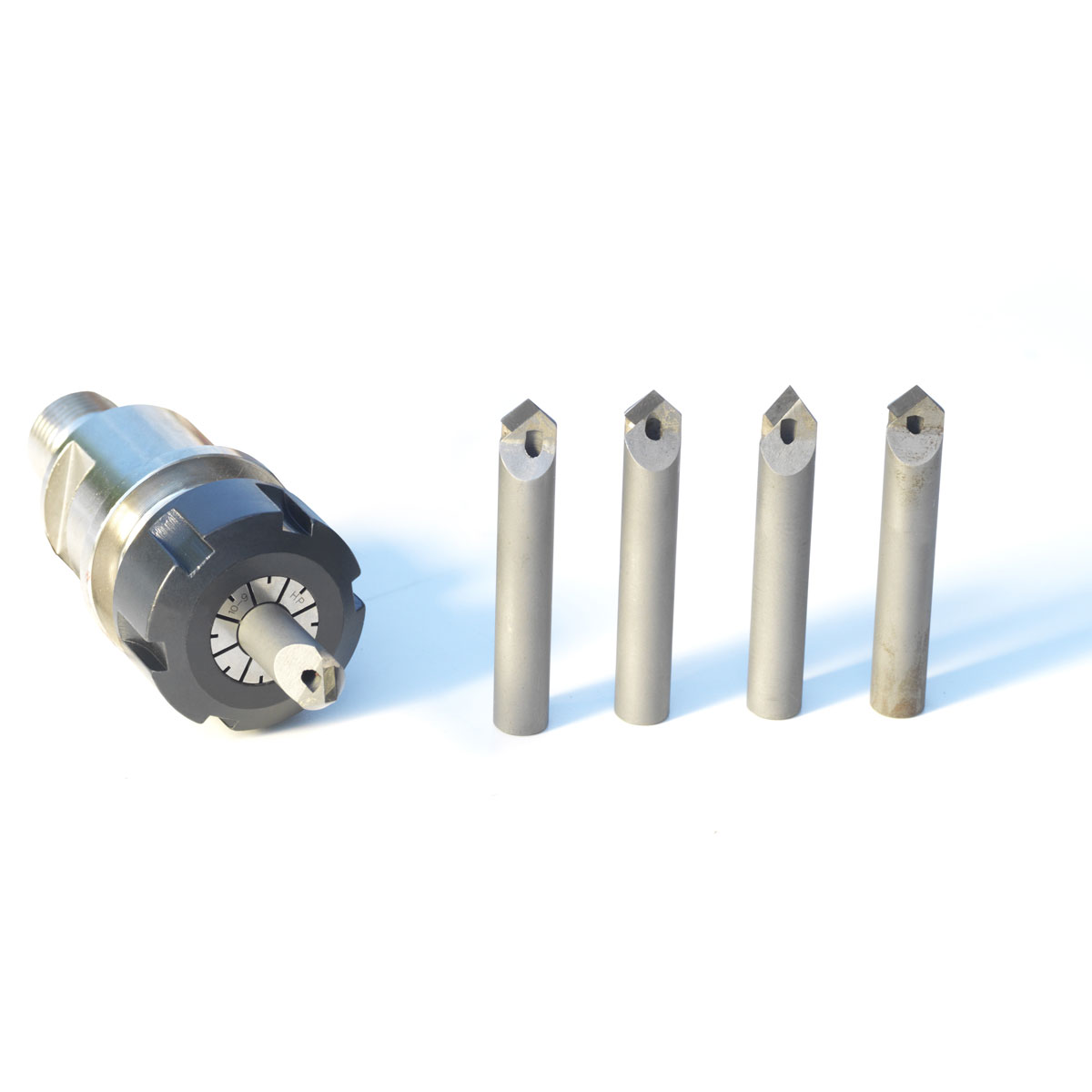

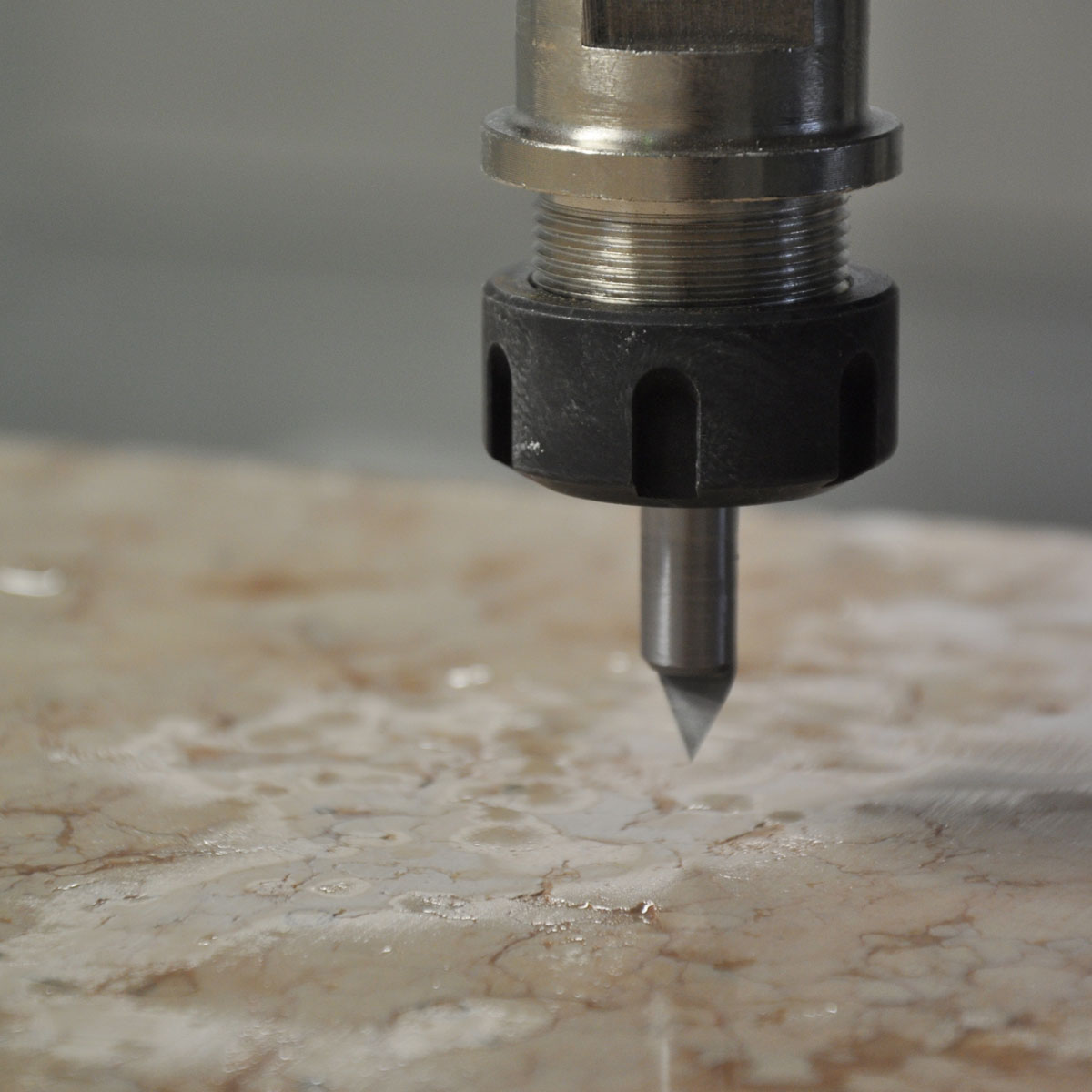

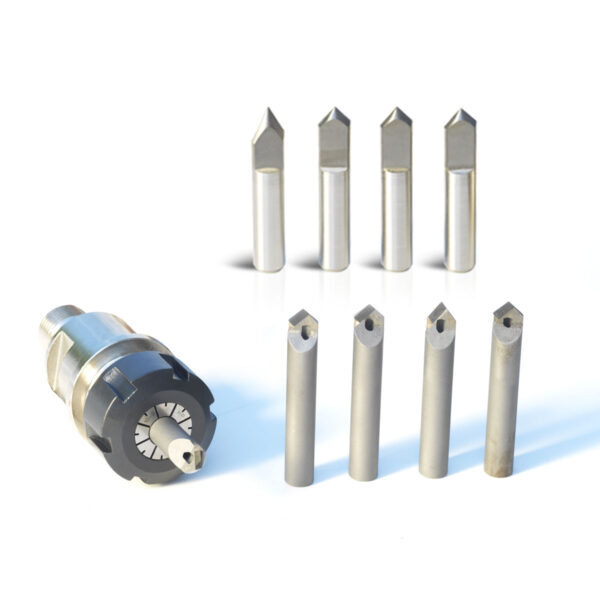

The diamond writing cutter is a tool equipped with a diamond tip for engraving granite and a Widia tip for working on marble and agglomerates. It allows for precise, detailed engravings, essential for high-quality work. The materials used in its construction are of premium quality, ensuring a long tool life even under intensive use conditions.

PROCESSABLE MATERIALS

  • Marble, Granite, Natural stones, Natural Quartz, Agglomerate
Contact us

Technical Specifications

  • Connection: Ø10 mm, drilled for water flow
  • Output: over 400 letters of 30 mm height
  • Rotation speed: 5500 RPM
  • Feeding: 150 mm/min
  • Maximum step: 1.5 mm
  • Maximum depth: 3.0 mm

Recommendations for use

Begin with an inclination of approximately 20° relative to the surface and at 30% of the set feed rate. To reach a depth of 3.0 mm, perform two passes. The cutter’s edge can be resharpened once.

This tool is compatible with CNC machines and programs designed for interpolated Z-axis operations.
